Circular Connector Assemblies for connecting boxes​​

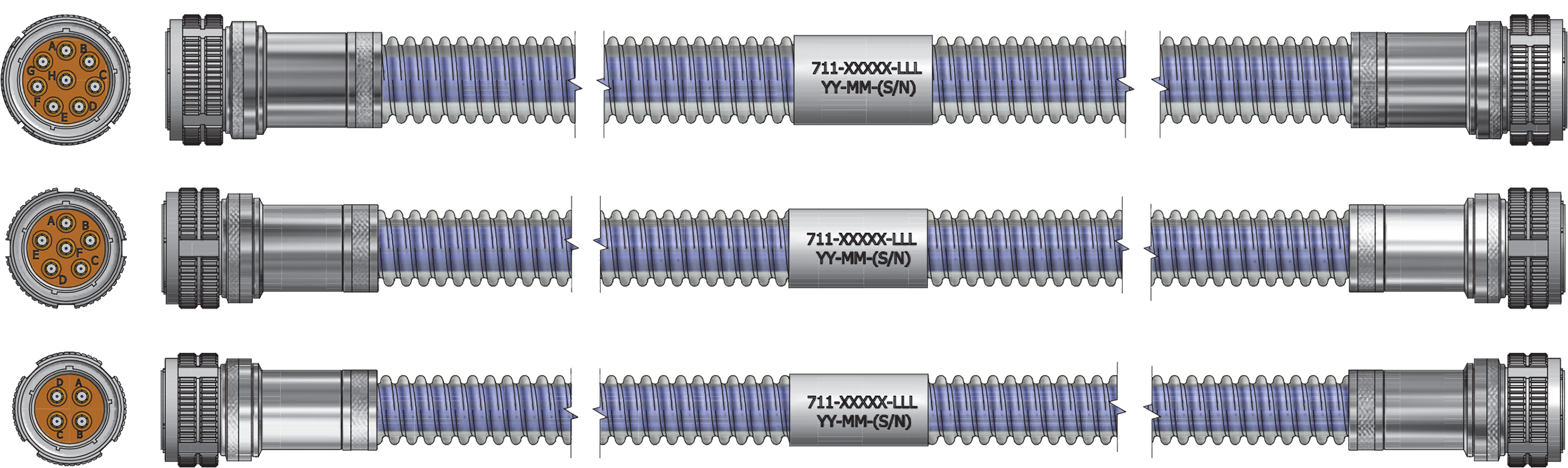

​Circular Connector Assembly 711 Series​

PRODUCT SERIES

SHELL SIZE

KEYING

CABLE OPTION

CONTACT SIZE

SLEEVING TYPE

LENGTH IN INCHES

711

25

N

T

8

1

LLL

711

23

N

T

8

1

LLL

711

21

N

T

8

1

LLL​​​​

Example: 711-21NT81-036 = Plug to Plug with Armor, Size 21 shell MIL-DTL-38999 connector, Normal Keying, True Blue 205 Cable, Size 8 Contact, Convoluted FEP Armor, 36" long.​​

Specifications
​​​​​​​​​D​​ata Sheet
​​​​

OPERATING FREQUENCY:

DC - 18 GHz*

VSWR:

DC - 12 GHz 1.35:1 MAX
12 - 18 GHz 1.45:1 MAX

INSERTION LOSS:

See calculator below

SHIELDING:

-60 dB @ 18 GHz MAX (tested per MIL-STD 1344 method 3008)

OPERATING TEMPERATURE:

-55° C TO +100° C

CABLE TYPE:

Coax, Teledyne Storm 421-010 (True Blue® 205)​​

38999 CONNECTOR:

– aluminum shell per MIL-DTL-38999
– electroless nickel per MIL-DTL-38999

BACKSHELL:

Stainless steel convoluted

TUBING:

FEP

CONTACTS‡:

Gold plated beryllium copper with PTFE dielectric​​

* Higher frequency options are also available.
† Many other finishes, cable types, and materials are available upon request.​
‡ Storm uses contacts from a variety of sources and selects the appropriate contact based on the desired performance for the application. Some of these contacts are proprietary designs, some are per MIL-C-39039.​​​​
